作业14：链路聚合
题目
按照拓扑图连接设备，并配置命令，使PC5、PC6、PC7、PC8、PC9与PC10之间互通。
设备互通使用静态路由或默认路由，所有配置截图。设备名称改为名字首字母。

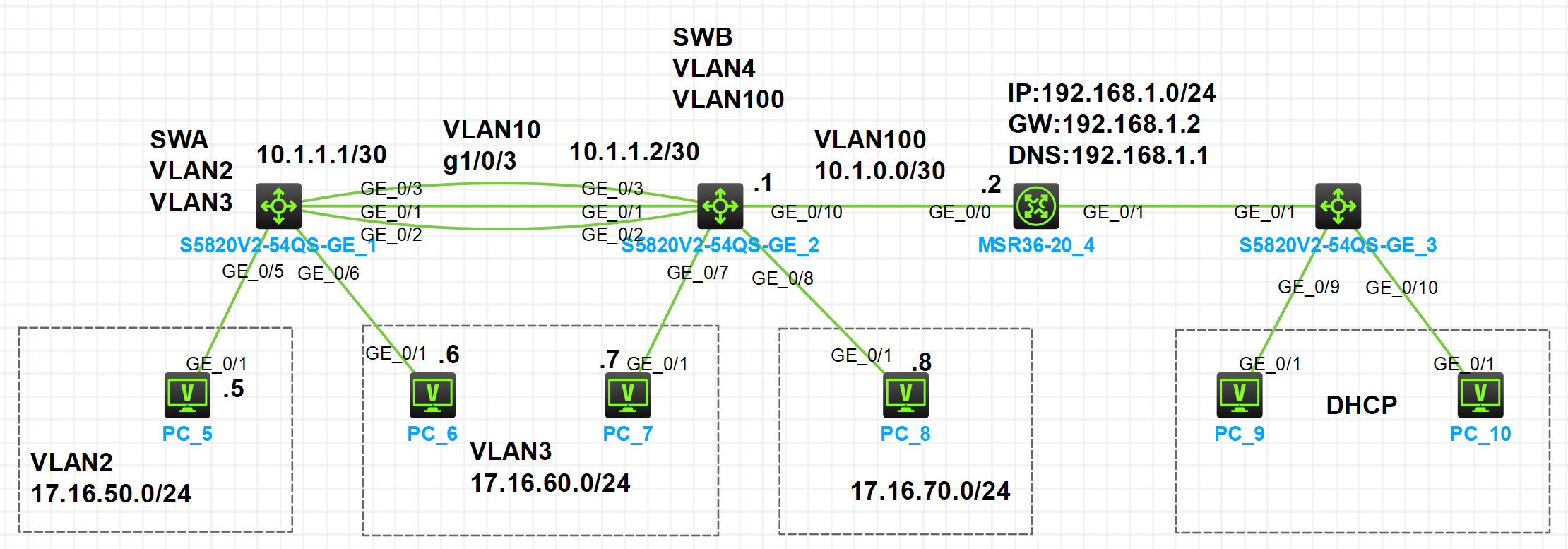

拓扑
若要照抄一定按照拓扑连线
SWA 配置如下
system-view ## 进入系统视图
sysname SWA-XXX ## 修改设备名称
vlan 2 ## 创建并进入VLAN视图
port GigabitEthernet 1/0/5 ## 在VLAN视图下将端口添加到对应VLAN
vlan 3
port GigabitEthernet 1/0/6
vlan 10
quit
interface Vlan-interface 2 ## 进入VLAN接口视图
ip address 17.16.50.1 24 ## 配置IP地址
quit
interface Vlan-interface 3
ip address 17.16.60.1 24
quit
interface Vlan-interface 10
ip address 10.1.1.1 30
quit
interface Bridge-Aggregation 1 ## 创建并进入二层聚合接口视图
link-aggregation mode dynamic ## 配置聚合组工作在动态聚合模式下
quit
interface range GigabitEthernet 1/0/1 to GigabitEthernet 1/0/3 ##选中多个接口
port link-aggregation group 1 ## 将接口加入聚合组 1
quit
interface Bridge-Aggregation 1 ## 进入二层聚合接口视图
port link-type trunk ## 修改模式为Trunk
port trunk permit vlan all ## 设置允许所有VLAN通过
quit
ip route-static 192.168.1.0 24 10.1.1.2 ## 设置静态路由SWB配置如下
system-view
sysname SWB-XXX
vlan 3
port GigabitEthernet 1/0/7
vlan 4
port GigabitEthernet 1/0/8
vlan 10
vlan 100
port GigabitEthernet 1/0/10
quit
interface Vlan-interface 4
ip address 17.16.70.1 24
quit
interface Vlan-interface 10
ip address 10.1.1.2 30
quit
interface Vlan-interface 100
ip address 10.1.0.1 30
quit
interface Bridge-Aggregation 1
link-aggregation mode dynamic
quit
interface range GigabitEthernet 1/0/1 to GigabitEthernet 1/0/3
port link-aggregation group 1
quit
interface Bridge-Aggregation 1
port link-type trunk
port trunk permit vlan all
quit
ip route-static 17.16.50.0 24 10.1.1.1
ip route-static 17.16.60.0 24 10.1.1.1
ip route-static 192.168.1.0 24 10.1.0.2RTA配置
system-view
sysname RTA-XXX
interface GigabitEthernet 0/0
ip address 10.1.0.2 30
quit
dhcp enable ## 启用DHCP
dhcp server ip-pool 0 ## 创建DHCP地址池
gateway-list 192.168.1.2 ## 指定DHCP网关地址
network 192.168.1.0 mask 255.255.255.0 ## 指定DHCP网段
dns-list 192.168.1.1 ## 指定DHCP DNS
expired day 21 ## 指定DHCP租约期限
quit
dhcp server forbidden-ip 192.168.1.1 ## 设置DHCP不允许分配的地址
dhcp server forbidden-ip 192.168.1.2 ## 网关地址与DNS地址不允许DHCP再分配
interface GigabitEthernet 0/1 ## 进入接口
ip address 192.168.1.2 24 ## 配置IP
dhcp server apply ip-pool 0 ## 在该接口启用DHCP
quit
ip route-static 17.16.50.0 24 10.1.0.1 ## 静态路由设置
ip route-static 17.16.60.0 24 10.1.0.1
ip route-static 17.16.70.0 24 10.1.0.1PC配置
ping 测试
ping测试分别在 PC5-PC9 中 ping PC10的IP地址
例如PC10的IP地址为 192.168.1.4，则：
ping 192.168.1.4
